Why Colored Solar Modules?
Quick answer
A colored solar module is a photovoltaic panel tinted with a coloured glass or coating so it can blend into a building facade or roof while still generating electricity. ZOEAST PV 460 W colored modules keep more than 97% of the output of an equivalent black module and are available in green, blue, terracotta RAL 2013, RAL 8004 and custom RAL colours.
Our 460W colored modules deliver industry-leading power output while maintaining complete design freedom for building-integrated photovoltaic (BIPV) applications.
Unlike traditional colored modules that sacrifice 10-15% efficiency for aesthetics, our breakthrough coating technology and large-format N-type cells enable:
1. 460W Power Output — 12% higher than industry-standard 410W modules in the same size (1762×1134×30mm)
2. Minimal Efficiency Loss — Less than 3% power reduction compared to black modules
3. Architectural Freedom — 4 standard colors plus custom RAL color matching
4. System-Level Benefits — Fewer modules, lower BOS costs, faster installation Building Integration — Solar becomes an aesthetic feature, not a compromise
Perfect for residential rooftops, commercial facades, and public infrastructure where both performance and appearance matter. Our 460W modules achieve the ideal balance: maximizing system power while preserving building aesthetics.
Available Standard Colors

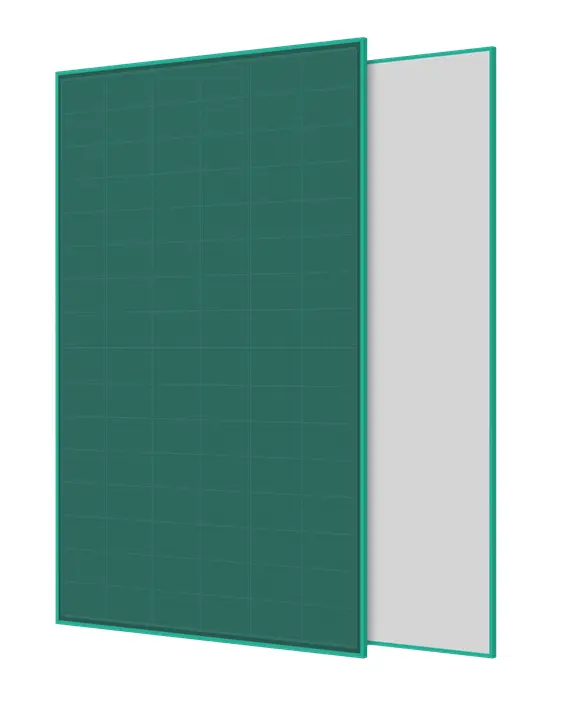

460W N-TYPE BIFI FACIAL GREEN COLOR MODULE
Solar Cells Type: N- type Mono-crystalline
No. of cells: 96(48x2)PCS
Size: 1762x1134x30mmmm
Weight: 23.5 kg.
Packing Detail
: 36 pcs/pallets, 26 Pallets/Cnt , 936 pcs/ 40'HQ

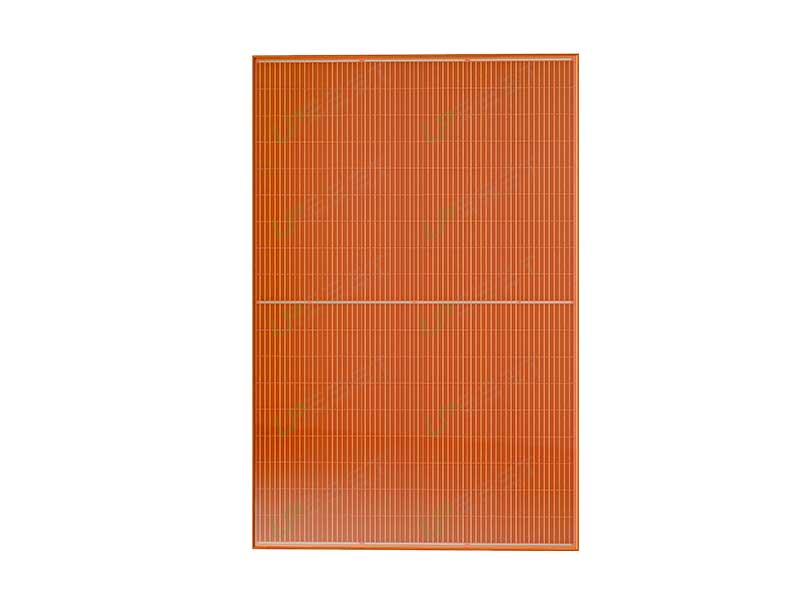

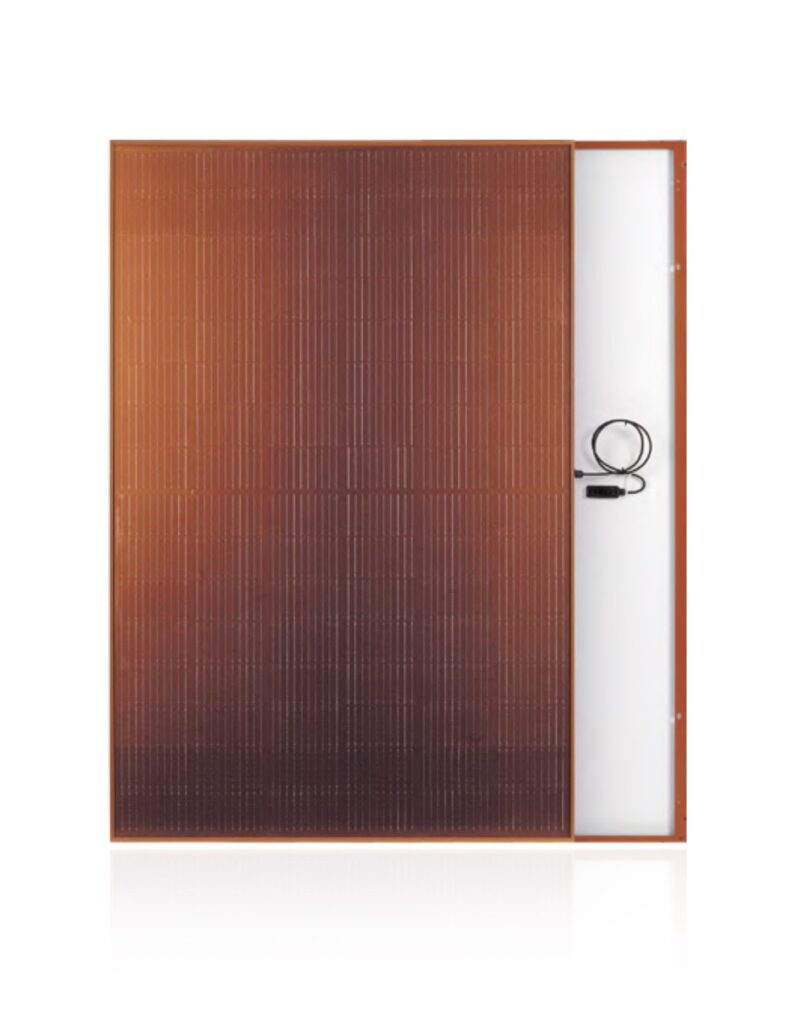

460W N-TYPE BIFI FACIAL TERRACOTTA RAL 2013
Solar Cells Type: N- type Mono-crystalline
No. of cells: 96(48x2)PCS
Size: 1762x1134x30mmmm
Weight: 23.5 kg.
Packing Detail
: 36 pcs/pallets, 26 Pallets/Cnt , 936 pcs/ 40'HQ

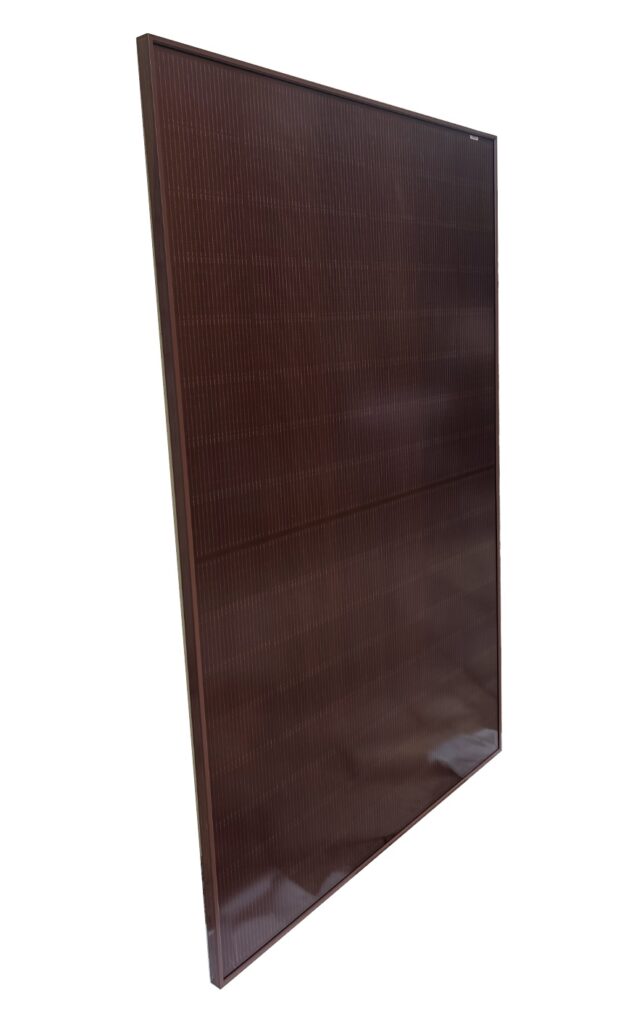

460W N-TYPE BIFI FACIAL TERRACOTTA RAL 8004
Solar Cells Type: N- type Mono-crystalline
No. of cells: 96(48x2)PCS
Size: 1762x1134x30mmmm
Weight: 23.5 kg.
Packing Detail
: 36 pcs/pallets, 26 Pallets/Cnt , 936 pcs/ 40'HQ
REQUEST A QUOTE FOR MORE DETAILS
All You Need To Know About 460w Colored modules!
1. Why 460W in the Same Size?
Traditional colored solar modules use pigments or films that absorb and block significant light wavelengths, resulting in 10-15% efficiency loss. Our proprietary multi-layer optical interference coating technology:
- Selectively transmits light wavelengths for optimal cell absorption
- Achieves vibrant colors through structural color (not pigments)
- Minimizes power loss to less than 3% compared to black modules
- Maintains color stability over 25+ year lifespan
- Enables 460W output while preserving aesthetic freedom
We utilize larger-area N-type monocrystalline cells compared to standard P-type cells:
- Higher base efficiency: 22.8%+ at module level
- Lower temperature coefficient: -0.29%/°C vs -0.35%/°C
- Reduced light-induced degradation (LID)
- Better low-light performance
- Longer lifespan with less than 1% first-year degradation
2. Efficiency Factors in Colored Modules
- Black/Dark colors: 460W (baseline)
- RAL 2013/8004 Terracotta: ~457W (less than 1% loss)
- Green/Blue: ~457W (less than 1% loss)
- Cell quality and type (N-type superior to P-type)
- Temperature: -0.29%/°C power loss per degree above 25°C
- Shading: Bypass diodes minimize shading impact
- Tilt and orientation: Optimal at 30-35° in Europe
- Irradiance levels: Excellent low-light performance
3. Key Components of Our Colored Modules
- Tempered low-iron glass with colored coating
- Multi-layer optical interference color coating
- Large-format N-type monocrystalline cells (96 cells)
- EVA encapsulation for weather protection
- PURA colored frame
- IP68-rated junction box with bypass diodes
- PURA solar moduels frame
- MC4 connectors for easy installation
4. Benefits of 460W Colored Modules
- Higher power density: More watts per m²
- Better temperature stability: -0.29%/°C coefficient
- Lower degradation: Less than 1% first year, less than 0.55%/year thereafter
- Extended warranty: 25 years performance, 12 years product
- Fewer modules = Lower BOS costs (mounting, wiring, labor)
- Faster installation with fewer panels
- Higher energy yield per installation area
- Better ROI for BIPV projects
- Seamless building integration
- Architectural design freedom
- Enhanced property value
- LEED/BREEAM certification support
5. Innovations in Colored Solar Technology
- Structural color technology (vs. pigment-based coloring)
- N-type cell advancement (higher efficiency, lower degradation)
- Bifacial capability for ground-mounted/elevated applications
- Larger cell formats (210mm cells) for higher output
- Advanced encapsulation materials for longevity
- Smart module integration (optional power optimizers)
6. How Colored Solar Modules Work
- Sunlight passes through the protective glass and coating layer
- The coating selectively filters wavelengths for both color and efficiency
- N-type cells convert absorbed photons into electrical current
- Cells are wired in series to achieve module voltage
- Junction box consolidates output for system connection
7. Maintenance and Lifespan
- Expected lifespan: 30+ years of operation
- Maintenance: Minimal – rain cleaning usually sufficient
- Annual inspection: Recommended for optimal performance
- Performance monitoring: Via inverter data logging
- Color stability: No fading over warranty period
- Cleaning: Self-cleaning with rain, or manual cleaning 1-2 times per year
Applications
Where 460W Colored Modules Excel

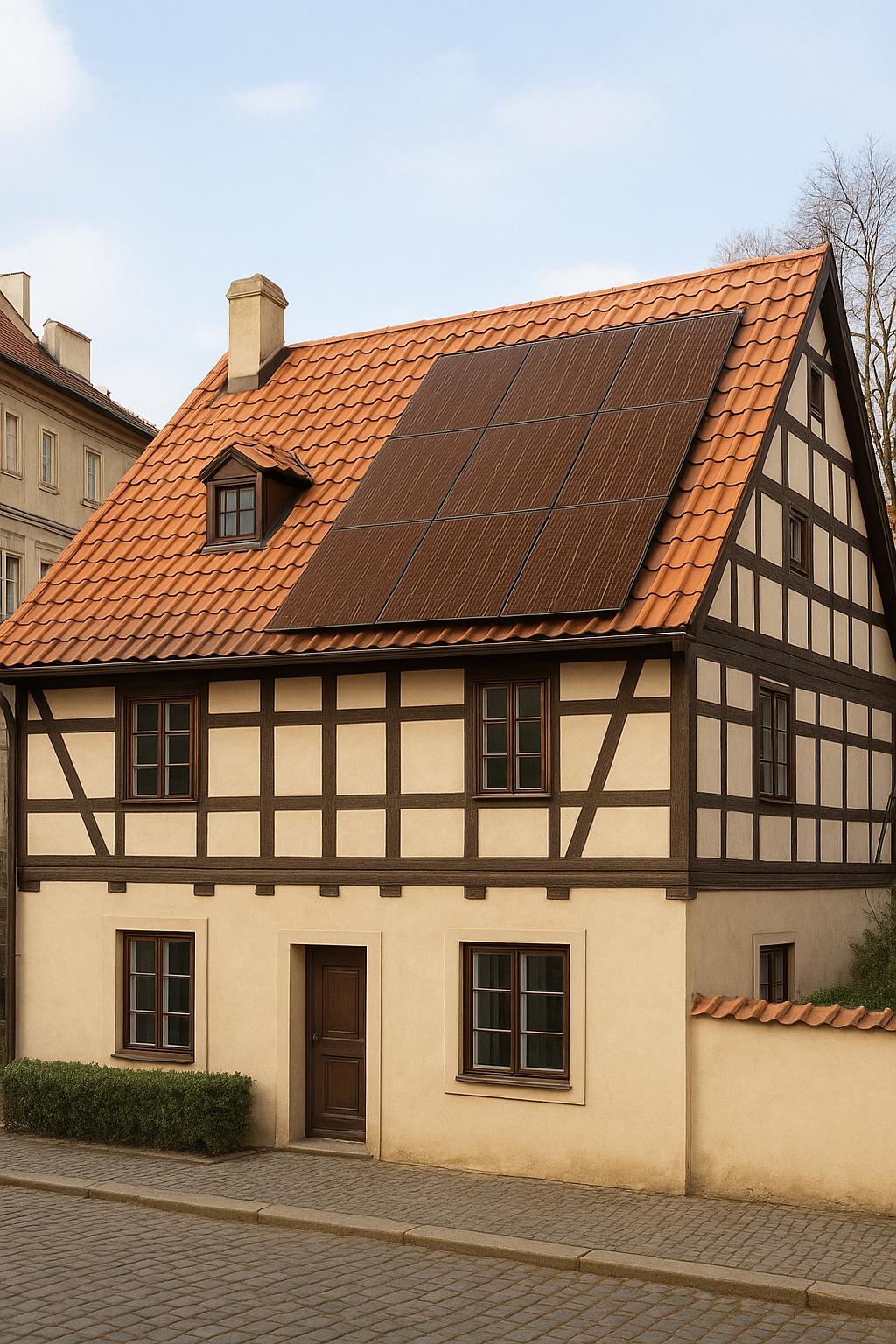

Residential Rooftop Systems
Ideal for: Villas, townhouses, heritage buildings
Benefits:
- Blend seamlessly with roof tiles through color matching
- 460W modules maximize limited roof space
- Maintain architectural aesthetics in historic districts
- Increase home resale value
- Meet HOA/neighborhood design requirements
Popular Colors: RAL 2013, RAL 8004
Typical System Size: 5-20kW

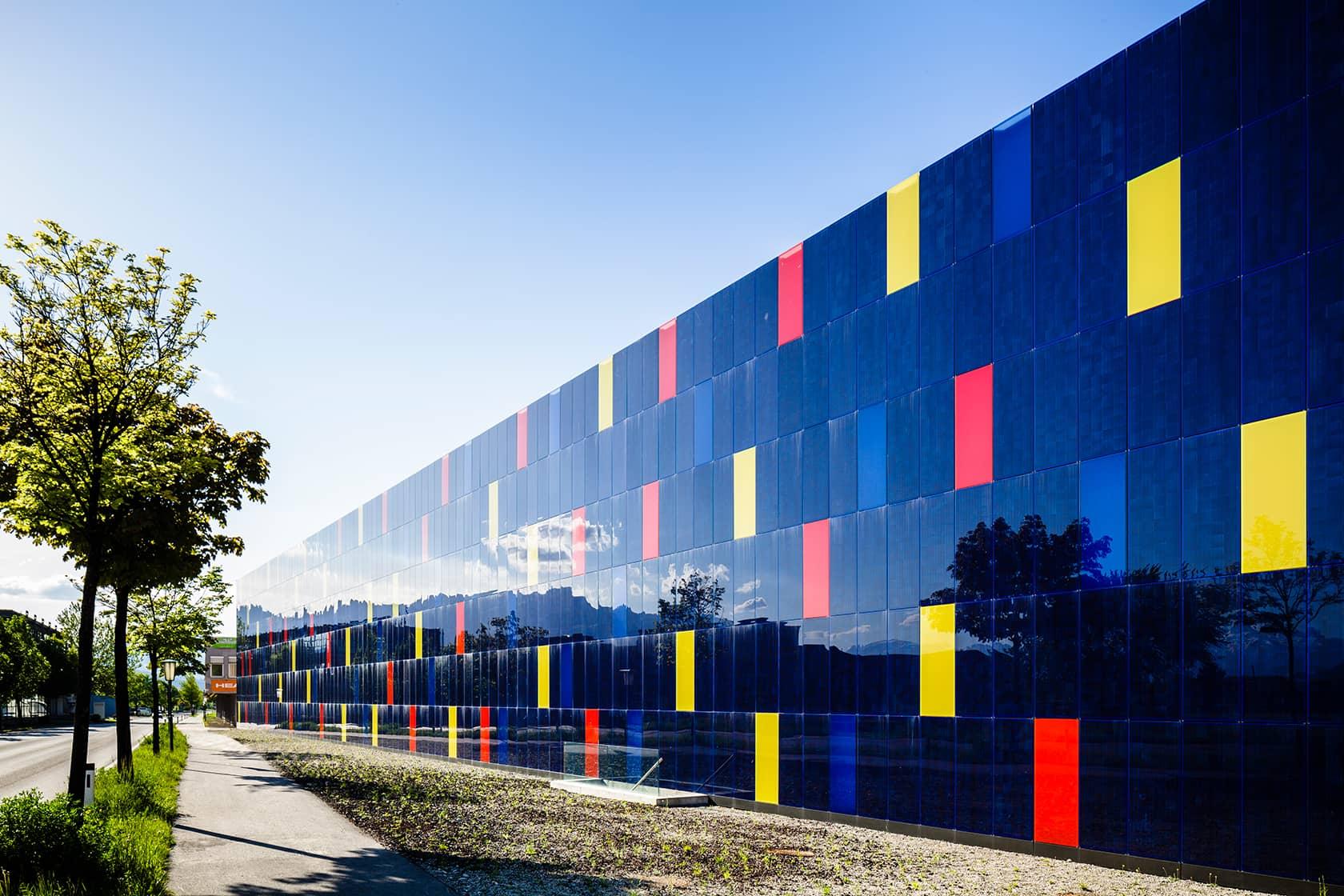

Commercial Building Facades
Ideal for: Office buildings, shopping centers, public facilities
Benefits:
- Transform building facade into power generator
- Achieve LEED/BREEAM green building certification
- Reduce tenant energy costs
- Enhance corporate sustainability image
- Create architectural statement pieces
Popular Colors: Blue, Green, Custom RAL
Typical System Size: 100-500kW

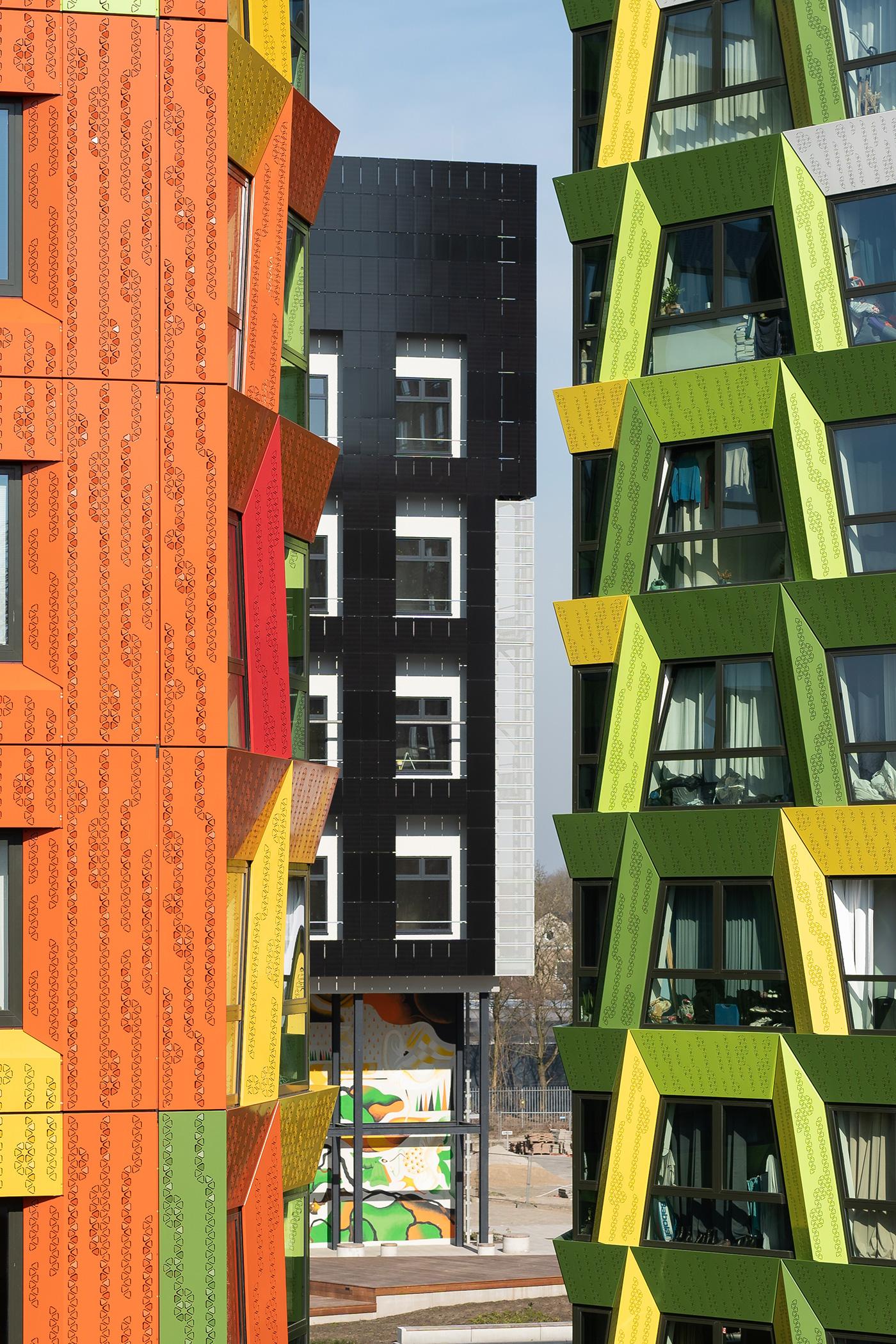

BIPV (Building-Integrated PV)
Ideal for: New construction, renovation, architectural landmarks
Benefits:
- Solar modules as building materials (not add-ons)
- Multi-functional: Weatherproofing + Power generation
- Design freedom with color customization
- Reduce overall building costs (replaces cladding)
- Showcase innovation and sustainability
Popular Colors: Custom RAL to match design
Typical System Size: 200kW – 1MW+
Frequently Asked Questions
Common questions about our 460W colored modules
Thanks to our proprietary coating technology, colored modules maintain greater than 99% of black module performance. While industry-standard colored modules lose 10-15% efficiency:
- Black module: 460W
- Colored modules (RAL 2013, RAL 8004, Green, Blue): ~457W (less than 1% difference)
- Same 22.8%+ efficiency rating
- Same -0.29%/°C temperature coefficient
- Same 25-year performance warranty
The minimal power difference is achieved through advanced multi-layer optical coatings that selectively transmit wavelengths while maintaining high light absorption.
Minimum Order Quantities vary by customization level:
Standard Colors (RAL 2013, RAL 8004, Green, Blue):
- MOQ: Contact us for confirmation
- Lead time: 2-3 weeks
Custom RAL Color Matching:
- MOQ: Contact us for confirmation
- Lead time: 4-6 weeks (includes color sampling and approval)
Full OEM with Branding:
- MOQ: Contact us for confirmation
- Lead time: 6-8 weeks (includes sample development)
For large projects (greater than 5MW), flexible MOQ negotiation is available. Contact our sales team for a customized quote.
Yes, fully compatible with all major inverter brands:
- String inverters: SMA, Fronius, Huawei, Sungrow, etc.
- Microinverters: Enphase, APsystems, Hoymiles
- Hybrid inverters: SolarEdge, GoodWe, etc.
- System voltage: 1000V or 1500V DC compatible
Electrical specifications are optimized for standard MPPT range with MC4 connectors for plug-and-play installation. Complete stringing calculations available in our technical datasheet.
Our 460W colored modules are certified to international standards:
- IEC 61215: Module Design Qualification
- IEC 61730: Module Safety Qualification
- CE Marking: European Conformity
- TÜV Certified: Independent testing verified
- ISO 9001:2015: Quality Management System
- ISO 14001:2015: Environmental Management
All certification documents are available for download or upon request.
Three easy ways to get a quote:
- Click the “Quick Quote” button (opens form popup)
- Email us directly: sales@zoeastpv.com
- Call: +86(510)8739 7566
Our sales team responds within 24 hours with:
- Detailed quotation based on your requirements
- Technical specifications and product information
- Delivery timeline and logistics options
- Payment terms (T/T, L/C available)
